Woodturning CAD

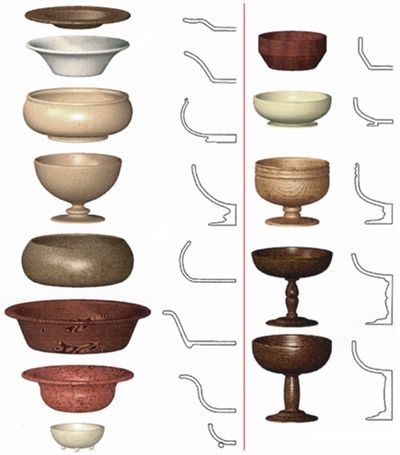

The bowls on this page are all standard designs, just variations on a theme,


The 2D views just show how a simple woodturning drawing can be quickly represented in simulated 3D to give a visualisation of the finished product.






Next bowl page  >> Next bowl page  >>

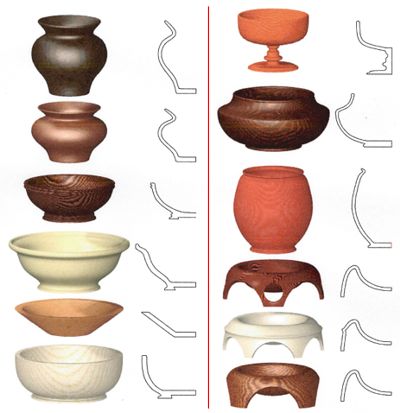

The three wood turned bowls at the bottom right of this picture are cut with a fretsaw or coping saw after the bowl has been turned.


For accurate marking out use paper or a computer program, to mark the positions of the cutouts, and transfer to tracing paper for marking on the wood.
